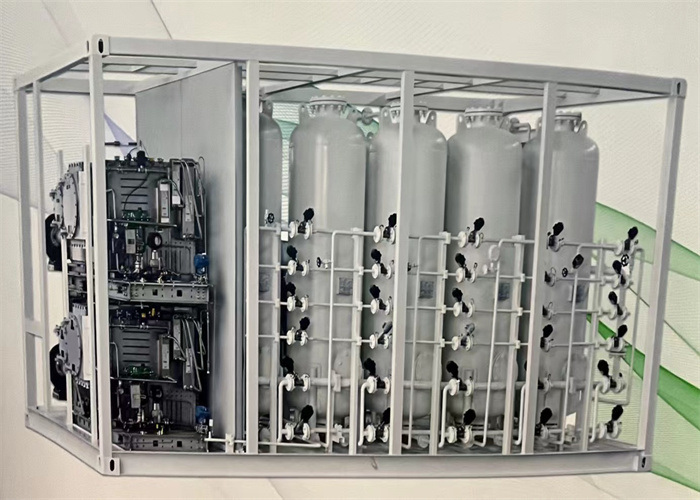

Hydrogen Production Methanol Cracking System For Bell Type Furnace Annealing

Hydrogen Production Methanol Cracking System For Bell Type Furnace Annealing

  • Hydrogen Production Methanol Cracking System For Bell Type Furnace Annealing
Hydrogen Production Methanol Cracking System For Bell Type Furnace Annealing
उत्पाद विवरण:
Place of Origin: Suzhou,China
ब्रांड नाम: SINCE-GAS
प्रमाणन: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: PM-C
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 1 set
मूल्य: Negotiate
Packaging Details: Normal exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
संपर्क करें
विस्तृत उत्पाद विवरण
क्षमता: 50-3000 एनएम3/एच पवित्रता: 99% -99.9999%
संचालन का दबाव: 0.8-2.5 एमपीए (जी) (समायोज्य) कच्चा माल: मेथनॉल
हाई लाइट:

मेथनॉल उत्पादन संयंत्र

,

मेथनॉल परियोजना

,

3000 Nm3/h मेथनॉल क्रैकिंग सिस्टम



Hydrogen Production Methanol Cracking System For Bell Type Furnace Annealing





Beside endothermic gas or endo gas, more and more methanol is used for the thermal treatment of metals as a protective gas. The methanol is directly insirted into the furnace and cracked there.
        CH3OH  →  CO  +  2 H2
Carbon monoxid and hydrogen are formed. The methanol cracking gas is an excellent carrier gas.
Hydrogen and carbon monoxide are reducing agents and avoid oxidation or corrosion of metal surfaces in a furnace. It has to be taken into account however, that carbon monoxid increases the carbon content of steel. Methanol cracking gas can therefore be used for surface hardening of steel by carbonisation or carburization. Carbon concentration can be increased up to the saturation level of austenite in surface close areas (around 1mm deep). In order to control the carbonization, water vapour can be added or nitrogen can be used for dilution.



Technical Figures:

1. In hot air stream, 95% to 98% of moisture can be evaporated immediately.

2. Quick drying speed:the surface area of material liquid through atomizing is increased greatly.

3. Product has good uniformity, fluidity, solubility, high pure, and quality.

4. For liquid containing 0~60% of damp(special may be 90%), it can be dried to powder through drying

one time.

5. After dried, not necessary to crush, sieve therefore reducing productive procedure .

6. For the size, bulk density and moisture of product can be adjusted within certain scope through exchanging

 operation condition.

7. large flexibility of operation

8. No high requirement for factory buildings



Applications:
1. Carbonisation, Carbonization, Carburization, Carburisation
2. Sintering
3. Annealing of steel with high carbon content
4. Normalizing





Technical features:

1.   It is a mature production technology, which can be operated safely and reliably.
2.  The feedstock is easy to get by a relatively stable price, and transported and stored easily too.
3.  The process flow is short and simple.
4.  Both energy consumption and production cost are relative low.
5.  Less land-occupation and investment, which can be recovered in a short period.
6.  Operation is simple and easy, and the automation is high.
7.  No environmental pollution.



Hydrogen Production Methanol Cracking System For Bell Type Furnace Annealing 0



Technical Index:

Production capacity

50-3000 Nm3/h

Product purity

99%-99.9995%

Temperature

Ambient

Product Pressuer

0.8-2.5 Mpa(g)


Process Flow Diagram
The mixture of methanol and demineralized water, after pressurized, evaporated and superheated to a certain temperature, is fed into a reactor, where the reforming gases including H2,CO2,CO etc. are formed under the action of the catalyst. The mixed gas is treated through the purification technology of PSA to get high purity hydrogen in one cycle.



Process flow diagram:

Hydrogen Production Methanol Cracking System For Bell Type Furnace Annealing 1
