|Place of Origin:||Suzhou,China|
|ब्रांड नाम:||SINCE GAS|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Exported wooden case|
|Delivery Time:||2 months after received down payment|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||1000 sets/year|
|Material:||Carbon steel/Stainless steel||Type:||Desiccant|
|Dew point:||-60 ℃||Operate type:||Fully automatic|
Regenerative Desiccant Air Dryer,
Refrigerated Compressed Air Dryer

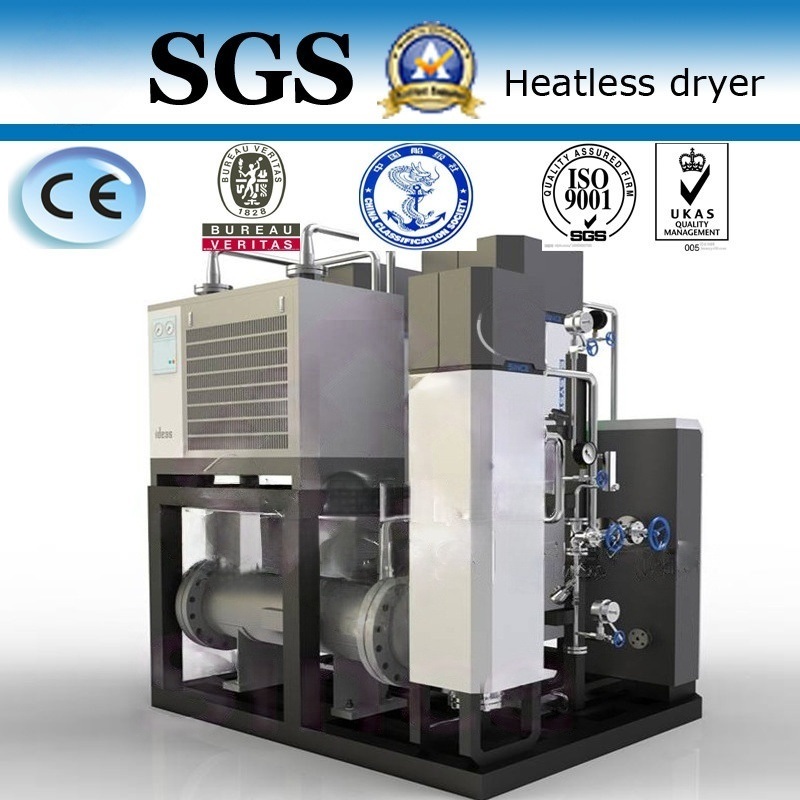

Regenerative Heatless Desiccant Dryers System 5-5000Nm3/H Capacity
SINCE Series Heatless compressed Air Dryer is a kind of simple, reliable and economical method for
removing water vapor from compressed air. The normal outlet pressure dew point is -40℃, lowest
pressure dew point can be -70℃.
the SINCE Series Heatless compressed Air Dryer is ideal for applications where compressed air lines
are exposed to blew zero ambient temperatures, or where special processes require air at an extremely
low relative humidity. This unit provides instrument quality air and is designed for maximum reliability
and long, trouble-free service.
the SINCE Series Heatless regenerative Air Dryer is based on pressure-swing
adsorption technology. There are two desiccant towers filled with activated alumina, as saturated air
flows up through the tower , its moisture content adheres to the surface of the activated alumina beads.
The dry air is then discharged from the tower into the distribution system.
After 5 minutes of operation on one tower the flow is switched to the other tower through the use of
a timed system of directional valves. A portion of dried compressed air is diverted through an orifice,
expanded to atmospheric pressure, and directed into the regenerating tower, where the moisture
accumulated during the drying cycle is stripped off and purged to the atmosphere.Standard Features
Reliable Timed controller Fieldproven over time, this design and technology maintain precise control
over all switching and purge valve functions.
High quality desiccant High quality, extra quantities of activated alumina is respectively filled in each
Pressure Gauges Located on each tower, provide visual indication of pressure during drying and
Product clean&pure compressed air
Normal pressure dew point:≤－40 to－70℃
During the last 10 years,about 98% old customers firmly choose SINCE
Why they always choose SINCE?
Many years of experience and expertise in manufacturing and supplying gas plants;
,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom
company who got ,TS (Manufacture License of special equipment)
CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen
Excellent infrastructure set up teamed by experienced and qualified engineers.
Sophisticated and developed R&D wing in assistance for installation and use of plants.
