Name: CE Verified PN-NP-C High Purity Nitrogen Generator 95%-99.9995%
Brand: JoShining Energy & Technology Co.,Ltd
SKU: PN-NP-C
Price: 5.00 USD
Availability: InStock

घर > उत्पादों > PSA Nitrogen Generator >

CE Verified PN-NP-C High Purity Nitrogen Generator 95%-99.9995%

सा नाइट्रोजन संयंत्र

पीएसए नाइट्रोजन गैस जनरेटर

सीई सत्यापित नाइट्रोजन जनरेटर

Place of Origin:

Suzhou

ब्रांड नाम:

SINCE-GAS

प्रमाणन:

CE,ABS,DNV,CCS,LR,BV,ASME,GOST

Model Number:

PN-NP-C

हमसे संपर्क करें

एक उद्धरण का अनुरोध करें

CE Verified PN-NP-C High Purity Nitrogen Generator 95%-99.9995%

उत्पाद विवरण

Features:

High purity

Material:

Carbon steel or stainless steel

Certificates:

CE,ABS,CCS,BV,DNV,LR,

Pressure:

8-10 bar

Purity:

95%-99.9995%

Dew point:

-40 - 70℃

Adsorbent:

CMS

प्रमुखता देना:

सा नाइट्रोजन संयंत्र

पीएसए नाइट्रोजन गैस जनरेटर

सीई सत्यापित नाइट्रोजन जनरेटर

भुगतान और शिपिंग की शर्तें

Minimum Order Quantity

1 set

मूल्य

negotiable

Packaging Details

Normal standard exporting packing

Delivery Time

2-3 months

Payment Terms

L/C,T/T,Western Union,MoneyGram

Supply Ability

70 sets per year

संबंधित उत्पाद

BV,,CCS,TS,ISO Oil&Gas nitrogen generator package system

सर्वोत्तम मूल्य प्राप्त करें

BV,,CCS,ISO,TS Heat treatment nitrogen generator package system

सर्वोत्तम मूल्य प्राप्त करें

High Purity Heat Treatment Nitrogen Generator PSA Nitrogen Generation System

सर्वोत्तम मूल्य प्राप्त करें

High Purity Tire PSA Nitrogen Generator System Automatic Operating

सर्वोत्तम मूल्य प्राप्त करें

हमसे संपर्क करें

अब संपर्क करें

उत्पाद वर्णन

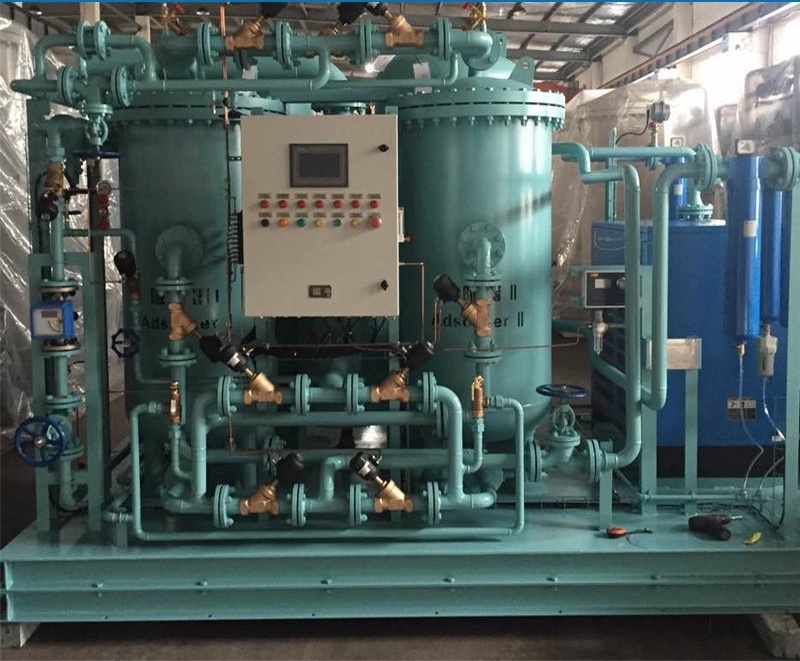

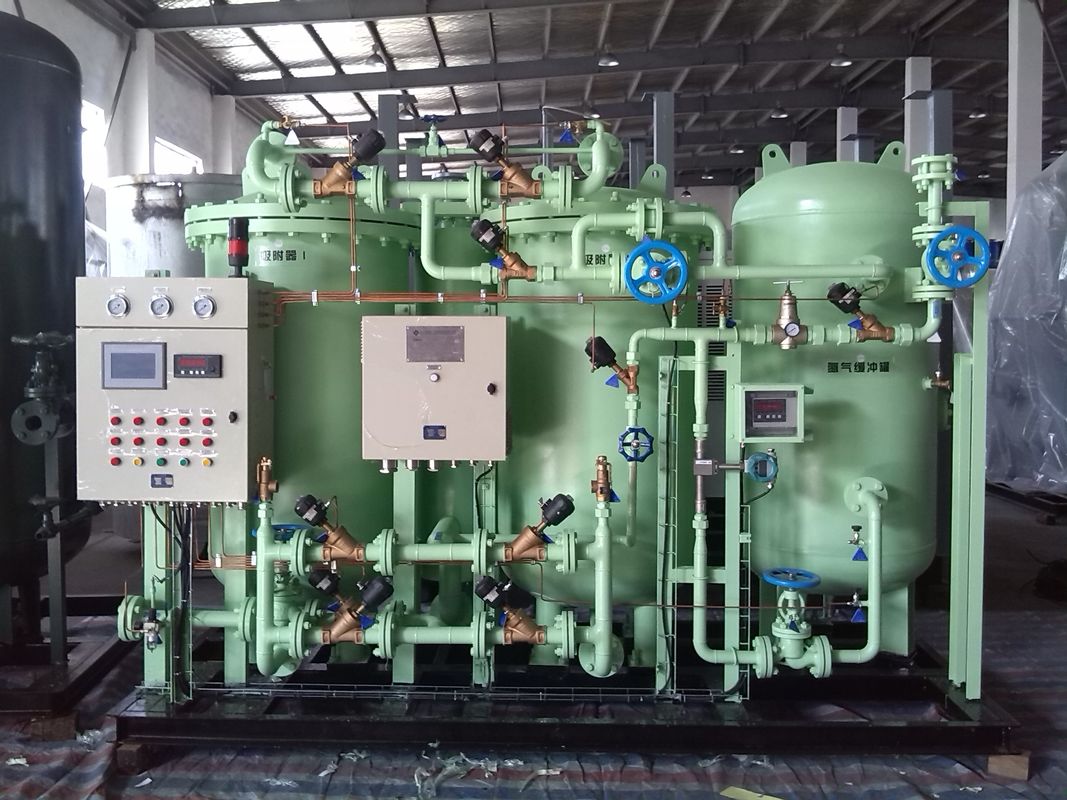

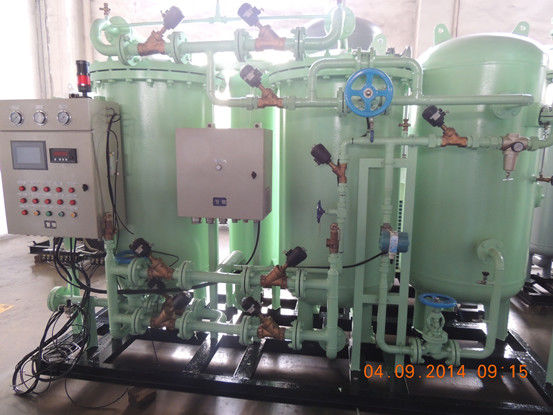

CE verified PN-NP-C High purity nitrogen generator

Description :

1. Purity : 95%-99.9995%
2. Energy-saving
3. 20 years Working life
4. Automatic operating

NO	Item	Notes
1	Nitrogen	High purity 99.9995%
2	Energy	Excellent energy-saving
3	Working life	＞20 years
4	Operating method	Fully automatic
5	Certificates	CE,TUV,,CCS approved

PSA technology allows nitrogen molecules to be isolated from other molecules in compressed air (water, oxygen, CO2, etc). The carbon molecular sieve (CMS), the adsorbent in the generator, retains all those molecules and only lets the nitrogen pass through to the outlet. While one tower is filled with CMS, another tower for working, around 58 seconds for swtiching, the one tower filled with CMS will use nitrogen for regeneration, mainly release the CO2, oxygen etc , SINCE gas nitrogen purity can produce from 95%-99.9995% .

Technical features :
Principle: passage of compressed air through a bed of carbon molecular sieve (CMS) using presure swing adsorption technology, the most reliable on the market
N2 flow: 5-5000 Nm3/h
O2 purity: 1% to 10 ppm
On-line monitoring instrument
Digital hours counter Audible and visual maintenance indicator
Economy mode option: via pressure to enables the compressor shut & start-up when nitrogen supply is not required

Specifications :

No	Model	Capacity(Nm3/h)	Purity	Power(KW)	Overall size(mm)
1 2 3 4	PN-3-39 PN-5-29 PN-5-295 PN-8-295	3 5 5 8	99.9% 99.5% 99% 95%	0.5	180014001500
5 6 7 8	PN-5-49 PN-8-39 PN-12-295 PN-15-29	5 8 12 15	99.99% 99.9% 99.5% 99%	0.5	180014001800
9 10 11 12	PN-10-49 PN-15-39 PN-25-295 PN-30-39	10 15 25 30	99.99% 99.9% 99.5% 99%	0.5	200017002250
13 14 15 16	PN-15-49 PN-22-39 PN-35-295 PN-45-29	15 22 35 45	99.99% 99.9% 99.5% 99%	0.5	210018002200
17 18 19 20	PN-20-49 PN-30-39 PN-50-295 PN-60-29	20 30 50 60	99.99% 99.9% 99.5% 99%	0.5	220018002200
21 22 23 24	PN-30-49 PN-45-39 PN-75-295 PN-88-29	30 45 75 88	99.99% 99.9% 99.5% 99%	0.5	240019002200
25 26 27 28	PN-40-49 PN-60-39 PN-100-295 PN-120-29	40 60 100 120	99.99% 99.9% 99.5% 99%	0.5	250021002500
29 30 31 32	PN-50-49 PN-70-39 PN-120-295 PN-140-29	50 70 120 140	99.99% 99.9% 99.5% 99%	0.5	260022002850
33 34 35 36	PN-60-49 PN-90-39 PN-160-295 PN-190-29	60 90 160 190	99.99% 99.9% 99.5% 99%	0.5	280022002500
37	PN-80-49	80	99.99%	0.5
38 39 40	PN-120-39 PN-200-295 PN-250-29	120 200 250	99.9% 99.5% 99%	0.5	320014002800
41 42 43 44	PN-100-49 PN-140-39 PN-250-295 PN-290-29	100 140 250 290	99.99% 99.9% 99.5% 99%	0.5	350015002800
...	...	...	...	...	...
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly

Application :

Nitrogen widely used following field :
Metal processing and laser cutting
Pharmaceuticals
Electronics
Food and beverage processing and storage

CE Verified PN-NP-C High Purity Nitrogen Generator 95%-99.9995% 0
